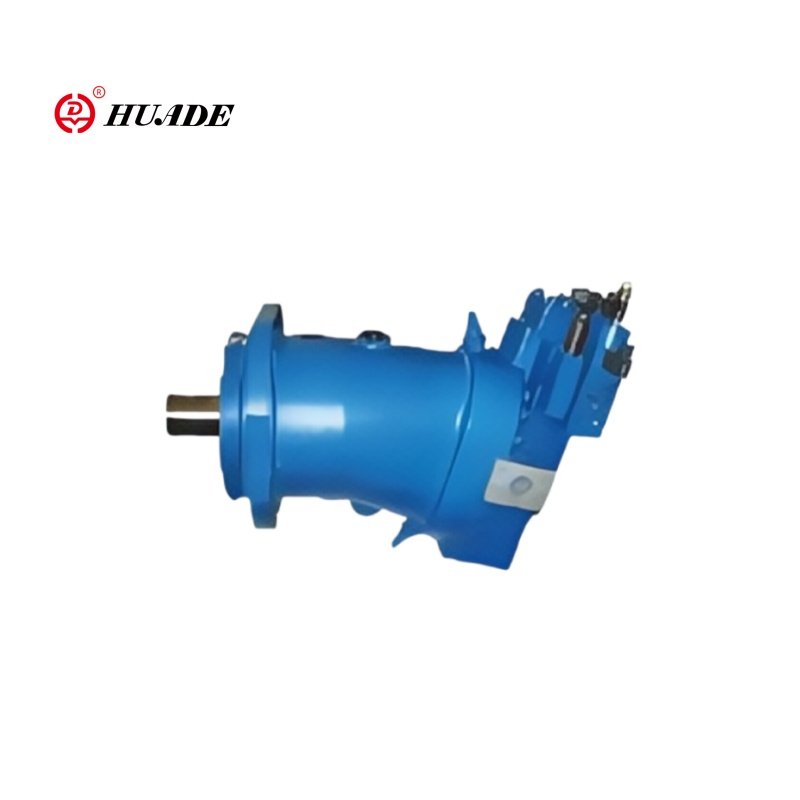

Аксиален бутален мотор A6Ve

Model:Axial Piston Variable Motor A6VE

Huafilter доставя Huade марка Axial Piston променлива мотор A6VE. Като гръбначно предприятие в хидравличната индустрия на Китай, Huade Hydraulic има широк спектър от продуктови линии на буталната помпа и е добре известен със своята надеждност, рентабилност и локализирани услуги. Широкото прилагане на A6Ve двигател се дължи на модулния му дизайн и съвместимост с хидравличните системи. Цената е с 20% ~ 30% по -ниска от същите спецификации на продуктите от Rexroth, Parker и други.

Изпратете запитване Изтегляне на PDF

Описание на продукта

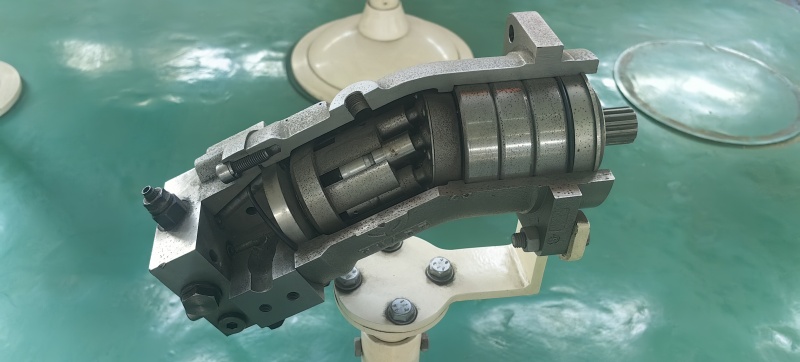

Axial piston variable motor A6VE is equipped with a standard axial tapered piston rotary group of benta xis design. Hydrostatic plug-in motors are intended primarily for installationl in mechanical gearboxes, e.g.track drive gear boxes. The desing of the A6VE motor with the mounting flange in the center of the housing allows it to be almost fully integrated into a mechanical gearbox. The casting shell of motor A6VE has been tested for high pressure tightness and is leak-proof.

Product parameter of Axial Piston Variable Motor A6VE

Pressure at port A or B
Nominal pressure	Pn=31.5MPa
Peak pressure	Pmax=35Mpa
Maximum permissible leakage oil pressure ( at Port T)	Pabs=0.2Mpa
Fluid temperature range
tmin	-25℃
tmax	+80℃
Viscosity range
umin	10mm²/s
umax	1000mm²/s
Optimum operating viscosity
Vopt	16-36mm²/s

Product Feature And Application of Axial Piston Variable Motor A6VE

Features:

▶Complete unit, ready assembled and tested,

▶Easy assembly simply plug-in to mechanical gearboxes.

▶No installation tolerances to consider

Application:

The variable displacement motor A6VE is an axial piston variable displacement motor, a core component in the field of hydraulic transmission, known for its high efficiency, high power density and adjustable displacement. Axial piston variable motor A6VE is widely used in travel drives of excavators, loaders, crawler cranes, combine harvesters/tractors, mining trucks/rock drills, etc.
